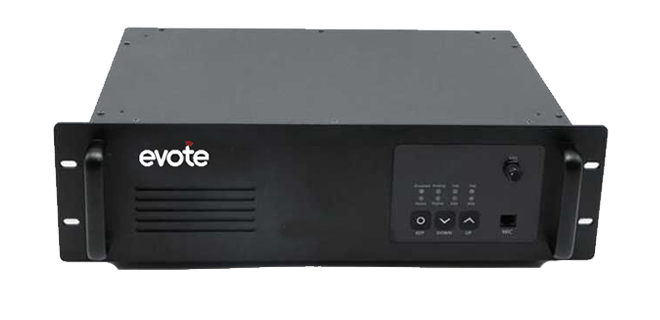

Repeater Station ET-MS100
Technical Paratemer
General
Frequency Range
400-470MHz
Step
12.5 , 20 , 25KHz
Channels Number
15
Work Mode
11KOF3E@12.5KHz , 16KOF@25KHz
Operating Temperature
-30℃～+60℃
Impedance
50Ω
Receiver
Wide
Narrow
Adjacent Channel Selection
≤70dB
≤60dB
Inter-modulation
≤65dB
≤60dB
Spurious Response
≤70dB
≤70dB
Sensitivity
<0.30µV
<0.35µV
Transmitter
Wide
Narrow
Type of Modulation
16K F3E
11K F3E
Signal to Noise Ratio
<-40dB
<-35dB
Spurious
<36dB<1GHz
<-30dB>1GHz
Audio Response
+1～-3dB(0.3～3KHz)
+1～-3dB(0.3～2.55KHz)
Output Power
1~40W
